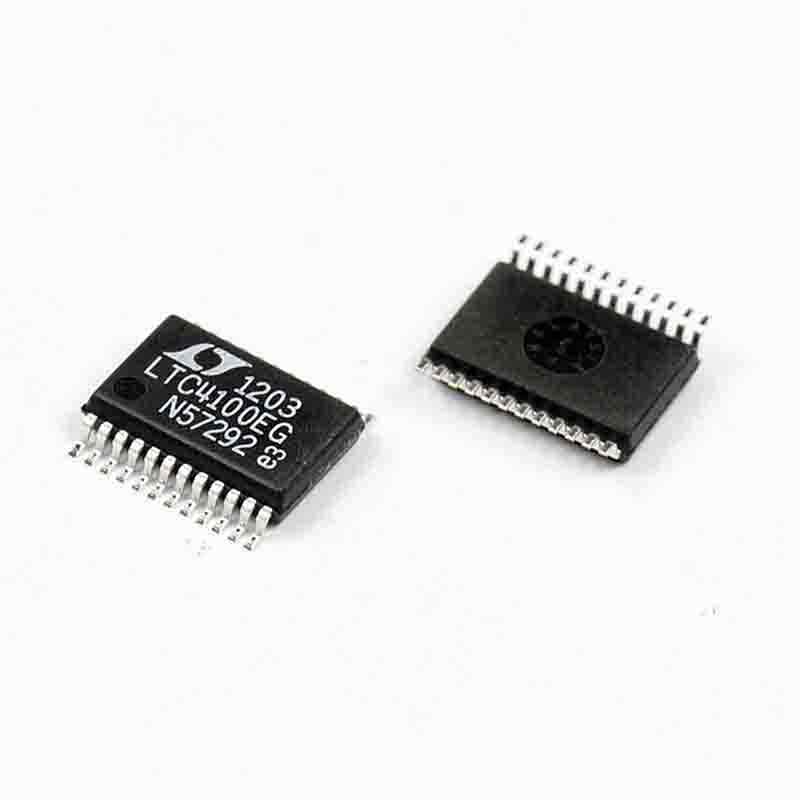

LTC4100EG#TRPBF

LTC4100EG#TRPBF Key Features

• High-Efficiency Charging: Provides high-efficiency charging for nickel chemistry batteries, optimizing the charging process.
• Precision Voltage Regulation: Features precision voltage regulation to ensure accurate and safe charging of batteries.
• Charge Status Indication: Offers charge status indication for monitoring the charging process.
• Temperature Sensing: Includes temperature sensing capability for enhanced safety and performance.
• External MOSFET Drive: Provides external N-Channel MOSFET gate drive output for flexibility in system design.

LTC4100EG#TRPBF Application

• Portable Devices: Ideal for battery charging in portable electronic devices, such as smartphones and tablets.
• Power Banks: Suitable for use in power banks and battery packs to efficiently charge nickel chemistry batteries.
• Medical Devices: Used in various medical devices requiring reliable and efficient battery charging.

Functionality

The LTC4100EG#TRPBF is a high-efficiency standalone nickel chemistry battery charger controller IC that provides precision voltage regulation and charge status indication. It ensures optimal charging performance for various battery-powered applications.

Usage Guide

• Power Supply: Connect VIN (Pin 8) to the power input for the charging process.
• Battery Connection: Connect BAT (Pin 11) to the battery for charging.
• Temperature Sensing: Utilize the TS/UV (Pin 9) input for temperature sensing or undervoltage lockout functionality.
