The STM32L431CBU6 developed by STMicroelectronics is an excellent ultra-low-power microcontroller. It is based on the ARM Cortex - M4 core and has a processing capacity of 100DMIPS. It is equipped with up to 256KB of Flash memory and 64KB of Static Random Access Memory (SRAM), providing ample storage resources. This microcontroller comes with rich peripherals, multiple communication interfaces, and a 12 - bit Analog-to-Digital Converter (ADC). Its low-power modes make it very suitable for battery-powered devices, and it has a wide range of applications in fields such as the Internet of Things, wearable devices, and industrial control.
STMicroelectronics STM32L431CBU6's Faetures
The STM32L431CBU6, introduced by STMicroelectronics, is a 32-bit microcontroller built around the ARM Cortex-M4 core. It combines low power consumption with high performance, making it suitable for a diverse range of applications. Here are its key features:
Core and Performance
- 32-bit ARM Cortex-M4 CPU with an integrated FPU (Floating-Point Unit), supporting single-precision data processing instructions and all DSP instructions. It delivers up to 100 DMIPS for efficient handling of complex algorithms.
- ART Accelerator™ for zero-wait-state execution from Flash memory, achieving peak performance at 80 MHz (e.g., CoreMark® score of 273.55 or 3.42 CoreMark/MHz @ 80 MHz).
- Memory Protection Unit (MPU) divides memory into protected regions to enhance application security and prevent inter-task memory conflicts.
Memory Resources
- Up to 256KB Flash memory with multiple protection mechanisms (Read Protection, Write Protection, Proprietary Code Read Protection, and ECC for single-bit error correction/double-bit error detection).
- 64KB SRAM split into 48KB SRAM1 and 16KB SRAM2 (with hardware parity check). SRAM2 retains data in Standby mode and supports 1KB granular write protection.
Low-Power Features
- 1.71V to 3.6V operating voltage with multiple low-power modes (Sleep, Low-power run, Low-power sleep, Stop 0/1/2, Standby, Shutdown). Current consumption varies by mode (e.g., 1.3μA in Stop 2 mode without RTC, 1.4μA with RTC).
- FlexPowerControl technology enables dynamic voltage scaling, adjusting the VCORE voltage based on operating frequency (e.g., Range 1 for up to 80 MHz, Range 2 for up to 26 MHz).
Clock System
- Multiple clock sources:
- 4–48MHz High-Speed External Crystal Oscillator (HSE)
- 32kHz Low-Speed External Crystal Oscillator (LSE) for RTC
- Internal 16MHz factory-calibrated RC oscillator (HSI16)
- Internal Low-Power 32kHz RC oscillator (LSI)
- Internal Multi-Speed 100kHz–48MHz oscillator (MSI)
- Internal 48MHz oscillator with clock recovery (HSI48)
- Two PLLs for system clock, audio, and ADC clock generation.
- Clock Security System (CSS) automatically switches to HSI16 and triggers interrupts on HSE/LSE failures.
Peripherals
- Timers:
- 1x 16-bit Advanced Motor Control Timer (TIM1)
- 1x 32-bit General-Purpose Timer (TIM2)
- 2x 16-bit General-Purpose Timers (TIM15, TIM16)
- 2x 16-bit Basic Timers (TIM6, TIM7)
- 2x Low-Power 16-bit Timers (LPTIM1, LPTIM2)
- 2x Watchdog Timers (IWDG, WWDG) and SysTick Timer
- Communication Interfaces:
- 1x Serial Audio Interface (SAI)
- 3x I²C (supporting FM+, SMBus/PMBus)
- 4x USART (ISO 7816, LIN, IrDA, modem support)
- 1x Low-Power UART (LPUART)
- 3x SPI (including 1x Quad SPI)
- CAN 2.0B Active, SDMMC, SWPMI, IRTIM
- Analog Peripherals:
- 1x 12-bit 5Msps ADC with hardware oversampling (up to 16-bit precision)
- 2x 12-bit DAC output channels
- 1x Operational Amplifier with built-in PGA
- 2x Ultra-Low-Power Comparators
- Internal Voltage Reference Buffer (VREFBUF)
- Capacitive Sensing: Up to 21 channels for touch buttons, linear/rotary sensors.
Other Features
- True Random Number Generator (RNG) for 32-bit random number generation.
- CRC Calculation Unit for data integrity checks.
- 96-bit Unique ID for product identification and secure applications.
- Debug Support: Serial Wire Debug (SWD), JTAG, and Embedded Trace Macrocell™.
- LQFP48 Package for flexible PCB layout in various applications.
This microcontroller is ideal for applications requiring a balance of performance, energy efficiency, and rich peripheral integration, such as IoT devices, wearable technology, industrial sensors, and smart home systems.
STMicroelectronics STM32L431CBU6's Applications
The STM32L431CBU6 is a 32-bit microcontroller based on the ARM Cortex-M4 core introduced by STMicroelectronics. With its rich features, it finds extensive applications in multiple fields:
Industrial Control
Motor Control
The chip integrates a 16-bit Advanced Motor Control Timer (TIM1), which can output complementary PWM signals with programmable dead-time for precise control of motor speed, direction, and torque. This suits various industrial automation motors, such as servo motors and stepper motors. In industrial robot joint drive control, the PWM output of TIM1, combined with encoder feedback, enables high-precision position and speed control, ensuring accurate and stable robot movements.
Sensor Data Acquisition and Processing
Equipped with a 12-bit 5Msps ADC supporting up to 16 external analog input channels, it can quickly and accurately collect data from various sensors (e.g., temperature, pressure, humidity sensors). The internal operational amplifiers and comparators preprocess sensor signals to enhance data reliability. In smart factory environmental monitoring systems, the ADC collects multi-sensor data to real-time monitor parameters like temperature, humidity, and harmful gas concentrations, triggering alarms and corrective actions when anomalies are detected.
Internet of Things (IoT)
Smart Home Devices
With rich communication interfaces (3x I²C, 4x USART, 1x LPUART, 3x SPI, CAN, SDMMC, etc.), it facilitates connectivity with various IoT devices. Used in smart home gateways and sensor nodes, it enables data transmission and interconnection. For example, a smart gateway connects to external Wi-Fi or Bluetooth modules via SPI to wirelessly communicate with cloud servers and other smart devices, allowing users to remotely control lights and appliances via a mobile app.
Wearable Devices
Its low-power features—1.71V to 3.6V operation and multiple low-power modes (Sleep, Low-power run, Stop, Standby, Shutdown, etc.)—significantly extend battery life. In wearable health monitors (e.g., smart bracelets, watches), the chip continuously collects heart rate, blood pressure, and motion data in low-power modes and transmits it to mobile devices via Bluetooth, meeting strict power and endurance requirements.
Consumer Electronics
Audio Devices
The integrated Serial Audio Interface (SAI) supports protocols like I2S, LSB/MSB-justified, PCM/TDM, AC’97, and SPDIF out, enabling audio codec and signal processing. In portable audio players and Bluetooth speakers, the SAI interfaces with audio codecs and power amplifiers to deliver high-quality sound, enhancing the user experience.
Smart Appliances
Its powerful processing and peripheral resources make it suitable for controlling and monitoring smart appliances (e.g., air conditioners, refrigerators, washing machines). Through communication interfaces, it receives user commands, controls appliance operations, and collects internal sensor data for intelligent management and fault diagnosis. For instance, a smart air conditioner adjusts cooling/heating modes based on temperature sensor data to optimize energy efficiency and comfort.
Medical Devices
Portable Medical Monitors
The high-precision ADC and analog peripherals enable acquisition and processing of physiological signals (ECG, blood pressure, SpO₂). In portable ECG monitors, the ADC captures ECG signals, processes them internally, and transmits data to doctors’ or users’ phones via wireless modules for remote monitoring, allowing users to track health in real time.
Medical Device Control
In small medical devices like infusion pumps and blood glucose meters, the STM32L431CBU6 serves as the core control unit, using timers and communication interfaces for precise flow control and data transmission. An infusion pump, for example, uses timers to regulate motor speed and control infusion rates while sending status updates to medical staff terminals via communication interfaces.
Why did I choose STM32L431CBU6: Ultra-Low Power ARM Cortex-M4 Microcontroller for IoT and Embedded Applications?
The STM32L431CBU6 is chosen for IoT and embedded applications mainly because of its excellent performance in low power consumption, high processing capabilities, rich peripheral resources, comprehensive development support, and cost - effectiveness, which can meet the stringent requirements of relevant applications.
- Low - power characteristics: The microcontroller has an operating voltage range of 1.71V to 3.6V and supports multiple low - power modes, such as Sleep, Low - power run, Low - power sleep, Stop 0, Stop 1, Stop 2, Standby, and Shutdown. In the Stop 2 mode, the typical current is only 1.3μA without RTC and 1.4μA with RTC. In the Shutdown mode, the current can be as low as 8nA (with 5 wake - up pins). These low - power modes can effectively reduce system energy consumption and extend the battery life of battery - powered devices. They are very suitable for IoT devices with strict power consumption requirements, such as wearable devices and environmental monitoring sensors, reducing the trouble of frequent battery replacement and improving the convenience and stability of device use.
- High - performance processing capabilities: It uses a 32 - bit ARM Cortex - M4 CPU integrated with an FPU, with an operation capacity of 100DMIPS, which can efficiently process complex algorithms. The integrated Adaptive Real - Time Accelerator (ART Accelerator™) enables zero - wait - state execution from Flash memory. At a frequency of 80MHz, it performs well, with a CoreMark® score of 273.55 (3.42 CoreMark/MHz @ 80 MHz). It can easily handle data processing tasks in IoT and embedded applications, such as edge computing and signal processing, ensuring fast response and accurate operation of the device.
- Rich peripheral resources
- Memory resources: It has up to 256KB of Flash memory for storing programs and data, with multiple protection mechanisms, such as Read Protection (RDP), Write Protection (WRP), Proprietary Code Readout Protection (PCROP), and supports ECC (Error Correction Code), which can detect and correct single - bit errors and detect double - bit errors, ensuring data security and reliability. It also has 64KB of SRAM, divided into 48KB of SRAM1 and 16KB of SRAM2 with hardware parity check. SRAM2 can retain data in standby mode, meeting the data storage and processing requirements of different scenarios.
- Communication interfaces: It integrates multiple communication interfaces, such as 3 I²C interfaces (supporting FM+, SMBus/PMBus), 4 USART interfaces (supporting ISO 7816, LIN, IrDA, modems), 1 low - power UART (LPUART), 3 SPI interfaces (including 1 Quad SPI), Controller Area Network (CAN 2.0B Active), SDMMC interface, Single Wire Protocol Master Interface (SWPMI), Infrared Interface (IRTIM), etc. These interfaces facilitate communication with a variety of external devices, meeting the interconnection requirements of IoT devices and enabling efficient data transmission and interaction.
- Analog peripherals: It is equipped with powerful analog peripherals, including a 12 - bit 5Msps ADC that supports hardware oversampling with a maximum resolution of 16 bits, 2 12 - bit DAC output channels, an operational amplifier with a built - in PGA, and 2 ultra - low - power comparators. In addition, it has an internal voltage reference buffer (VREFBUF) that can provide a stable reference voltage, which is suitable for applications that require high - precision analog signal processing, such as sensor data acquisition and motor control.
- Other peripherals: It supports up to 21 capacitive sensing channels, which can be used for applications such as touch keys, linear and rotary touch sensors. It integrates a True Random Number Generator (RNG) that can generate 32 - bit random numbers, has a CRC calculation unit for data verification, and has a 96 - bit unique ID for product identification and security applications, providing rich functional extensions for IoT and embedded applications.
- Comprehensive development support: It supports Serial Wire Debug (SWD), JTAG debugging, and Embedded Trace Macrocell™, which is convenient for developers to debug code and optimize the system, shortening the development cycle and improving development efficiency. At the same time, this microcontroller is compatible with all Arm tools and software, with rich development resources, reducing development difficulty and cost.
- High cost - effectiveness: On the premise of meeting the performance and functional requirements of IoT and embedded applications, the STM32L431CBU6 has a high cost - performance ratio. Its multiple low - power modes reduce energy costs, and its rich peripheral resources reduce the need for external expansion chips, thus reducing hardware costs. In addition, the comprehensive development support and wide compatibility also reduce development and maintenance costs, enhancing the overall cost - effectiveness of the project.

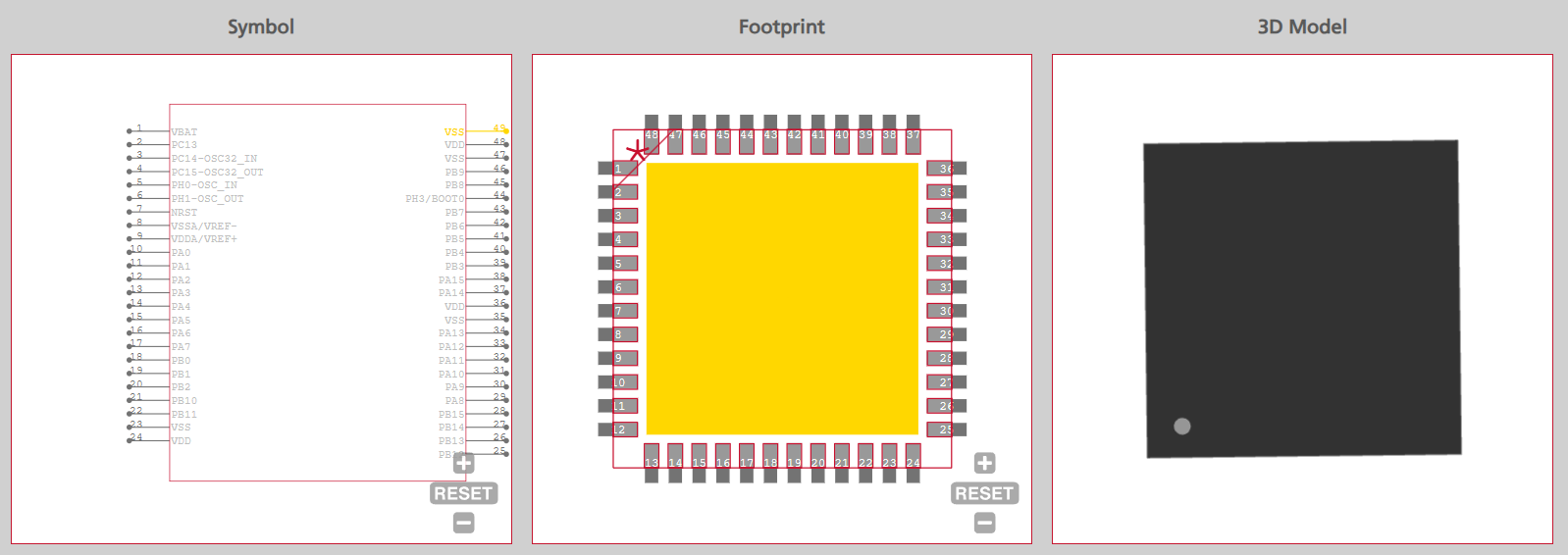

STMicroelectronics STM32L431CBU6's Pinouts
The STM32L431CBU6 uses the LQFP48 package, and its pins offer rich functionalities in power supply, clock, communication, and general-purpose input/output (GPIO), supporting the chip's connection to external devices and system operation. Below is a detailed introduction to its pins:
Power Supply Pins
- VDD: Provides an external power supply of 1.71–3.6V for the chip’s I/O, internal regulators, and system analog components. It serves as the main power input for normal operation, powering digital circuits and some analog circuits.
- VSS: Ground pin, forming a power loop with VDD to ensure stable reference for electrical signals.
- VDDA: Supplies external analog power (1.62V for ADCs/COMPs or 1.8V for DAC/OPAMP – 3.6V) to analog peripherals like ADC, DAC, OPAMP, comparators, and voltage reference buffers, ensuring accurate and stable analog signal processing.
- VSSA: Analog ground pin, providing a grounding reference for analog circuits to reduce interference between analog and digital signals.
- VBAT: Powers the RTC, external 32kHz oscillator, and backup registers when VDD is absent (1.55–3.6V). For example, it maintains RTC timing and backup register data when the main power supply fails.
Clock Pins
- OSC_IN (PH0): High-speed external clock input pin, connecting to a 4–48MHz crystal oscillator or ceramic resonator for high-precision external clock sources. It can also input external clock signals in bypass mode.
- OSC_OUT (PH1): High-speed external clock output pin, emitting oscillation signals when an external crystal oscillator is used.
- OSC32_IN (PC14): Low-speed external clock input pin for a 32.768kHz crystal oscillator, providing clock signals for the RTC to ensure accurate timing.
- OSC32_OUT (PC15): Low-speed external clock output pin, outputting 32.768kHz clock signals to drive external devices requiring this frequency.
Reset Pin
- NRST: Reset pin for initializing the chip. When the pin voltage drops below a specific threshold (e.g., VIL (NRST), typically 0.3×VDDIOx), the chip enters reset mode, initializing internal registers and circuits to default states. An internal permanent pull-up resistor keeps the pin high in the absence of an external reset signal.
General-Purpose Input/Output (GPIO) Pins
The chip features multiple GPIO pins (e.g., PA[0–15], PB[0–15], PC[0–15]), configurable via software as inputs (with optional pull-up/down resistors), outputs (push-pull or open-drain mode), or peripheral multiplexed functions. For example:
Communication Interface Pins
I2C Interface
- Pins like PB6 (SCL, clock) and PB7 (SDA, data) support I2C communication in standard mode (up to 100kbit/s), fast mode (up to 400kbit/s), and fast mode Plus (up to 1Mbit/s). They connect to I2C devices (e.g., EEPROM, sensors) for serial communication.
SPI Interface
- Pins like PA5 (SCK), PA6 (MISO), and PA7 (MOSI) configure the SPI interface, supporting half-duplex, full-duplex, and simplex modes with speeds up to 40Mbit/s (master) and 24Mbit/s (slave). They enable high-speed data transfer with SPI devices (e.g., Flash memory, ADC).
USART Interface
- Pins like PA9 (TX) and PA10 (RX) support USART asynchronous communication, IrDA SIR ENDEC, multiprocessor mode, and single-wire half-duplex mode at speeds up to 10Mbit/s, enabling data communication with other serial devices.
Other Interfaces
-
CAN: PA11 (CAN_RX) and PA12 (CAN_TX) for Controller Area Network communication.
-
SDMMC: Pins like PC6 and PC7 for communication with storage devices (e.g., SD cards).
-
SWPMI: Pins like PA13 and PA14 for single-wire protocol communication.
Other Functional Pins
Timer (TIMx) Pins
- Pins like PA1 and PA2 serve as TIM2 channel pins for input capture, output compare, and PWM generation. For example, PA1 (TIM2_CH2) can output PWM signals to control motor speed and direction in motor control applications.
ADC Pins
- Pins like PA0–PA7 and PC0–PC3 act as ADC analog input channels, converting external analog signals (e.g., temperature sensor outputs on PA0) into digital data for acquisition.
DAC Pins
- Pins like PA4 (DAC1_OUT1) and PA5 (DAC1_OUT2) convert digital signals to analog voltage outputs. For instance, PA4 can output analog audio signals to drive speakers in audio applications.
STMicroelectronics STM32L431CBU6's Categroy- Microcontroller
A microcontroller is an integrated circuit that integrates a CPU, memory, and multiple peripherals on a single chip. It is widely used in numerous fields due to its small size, low power consumption, and low cost. In smart homes, microcontrollers can process sensor data and control household appliances; in industrial control, they can precisely regulate motor operation. With rich interfaces, they can communicate with various external devices, and their powerful processing capabilities enable efficient execution of complex tasks.
The STM32L431CBU6 from STMicroelectronics is an excellent microcontroller. Based on the ARM Cortex-M4 core, it offers 100 DMIPS computing power for fast and efficient data processing. It features abundant storage resources, including up to 256KB of Flash and 64KB of SRAM. With multiple low-power modes, such as Stop 2 mode with a typical current of only 1.3μA without RTC, it is suitable for applications with strict power consumption requirements. Its rich peripheral resources, such as various communication interfaces and high-precision ADC, meet diverse functional needs. It plays a crucial role in IoT, industrial control, consumer electronics, and other fields, providing strong support for the development of related products.
STM32L431CBU6's Manufacturer-STMicroelectronics
STMicroelectronics has significantly influenced the Microcontroller domain. Their STM32 series, like the STM32L431xx, is a prime example of their success. These microcontrollers are built around advanced architectures such as the Arm® Cortex®-M4 core, which offers high - performance processing with up to 100DMIPS and DSP instructions support, enabling efficient handling of complex tasks.
In terms of power management, STMicroelectronics stands out. The STM32L431xx features FlexPowerControl, allowing operation in a wide 1.71V - 3.6V voltage range and supporting multiple low - power modes. This makes it ideal for battery - powered devices, reducing energy consumption and extending battery life.
Moreover, STMicroelectronics provides comprehensive development support. Tools like serial wire debug (SWD), JTAG, and Embedded Trace Macrocell™ simplify the development process, shortening development cycles. Their products also come in various packages, catering to different application requirements. All these achievements have solidified STMicroelectronics' position as a leader in the microcontroller market.
STM32L431CBU6 vs STM32C031C6T6
| Part number |
Manufacturer |
Package |
Description |
| STM32L431CBU6 +BOM |
STMicroelectronics, Inc |
LQFP48 |
MCU with 32 - bit ARM Cortex M4 architecture |
| STM32C031C6T6 +BOM |
STMicroelectronics, Inc |
LQFP - 48 |
Advanced STM microcontroller for IoT and industrial us |
