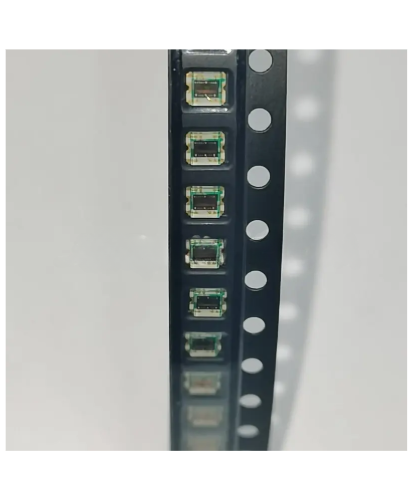

APDS-9005-020

APDS-9300-020 Features

• Approximate the human-eye response
• Precise Illuminance measurement under diverse lighting conditions
• Wide illuminance range measurement
• Programmable Interrupt Function with User-Defined Upper and Lower Threshold Settings
• 16-Bit Digital Output with I2C Fast-Mode at 400 kHz
• Programmable Analog Gain and Integration Time
• Miniature ChipLED PackageHeight - 0.55mmLength - 2.60mmWidth - 2.20mm
• 50/60-Hz Lighting Ripple Rejection
• Low 2.5-V Input Voltage and 1.8-V Digital Output
• Low Active Power (0.6 mW Typical) with
• Power Down Mode
• RoHS Compliant

APDS-9300-020 Applications

• Detection of ambient light to control display backlighting
  • Mobile devices – Cell phones, PDAs, PMP
  • Computing devices – Notebooks, Tablet PC, Key board
  • Consumer devices – LCD Monitor, Flatpanel TVs, Digital Cameras
• Automatic Residential and Commercial Lighting Management
• Automotive instrumentation clusters
• Electronic Signs and Signals

APDS-9300-020 Usage Guide

• Power Supply: Connect VCC (Pin) to the power supply voltage (specified in datasheet).
• Communication: Utilize the I2C interface (SCL and SDA pins) to communicate with the sensor for light level readings.
• Interrupt Output: Monitor the INT pin for interrupt signals triggered by predefined light level thresholds.

APDS-9300-020 Equivalent

For similar functionalities, consider these alternatives to the APDS-9005-020:

• APDS-9301: Another ambient light sensor from Avago Technologies offering comparable features and performance.
• TSL2561: A digital luminosity sensor that can be used for ambient light sensing in various applications.

APDS-9300-020 Specifications
