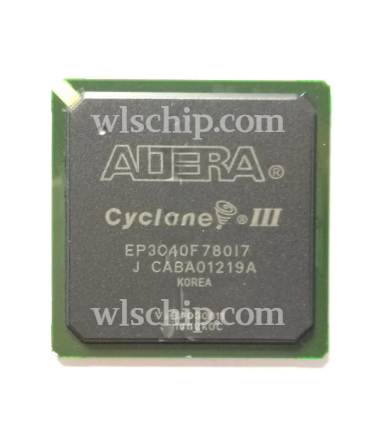

The EP3C40F780I7 is a member of the Cyclone III family of FPGAs (Field-Programmable Gate Arrays) designed for high-performance digital logic applications. This FPGA offers a versatile and flexible platform for implementing custom logic functions and signal processing algorithms.
EP3C40F780I7 Key Features
- High-Speed Performance: The EP3C40F780I7 offers high-speed operation, making it suitable for demanding digital logic applications.
- Flexible Logic Architecture: This FPGA features a flexible logic architecture, allowing for custom logic functions and complex algorithms to be implemented.
- Embedded Memory: Includes embedded memory blocks for storing configuration data and application-specific information.
- Low Power Consumption: With its low-power design, the EP3C40F780I7 is suitable for power-sensitive applications.
EP3C40F780I7 Applications
- Digital Signal Processing: The EP3C40F780I7 is ideal for implementing digital signal processing algorithms and functions.
- Custom Logic Functions: Suitable for building custom logic functions and control systems in various applications.
- Communication Systems: Used in communication systems for protocol handling and data processing.
Functionality
The EP3C40F780I7 FPGA provides a customizable and programmable platform for implementing a wide range of digital logic functions and algorithms. It offers high-speed performance and flexibility for diverse applications.
Usage Guide
- Power Supply: Connect VCCIO, VCC, and GND pins to the appropriate power sources as per the datasheet guidelines.
- Configuration: Follow the configuration procedure outlined in the datasheet to program the FPGA for specific applications.
- Logic Design: Use the provided development tools to design and implement custom logic functions within the FPGA.
EP3C40F780I7 Frequently Asked Questions
Q: What programming languages are commonly used to program the EP3C40F780I7 FPGA?
A: Commonly used programming languages include VHDL (VHSIC Hardware Description Language) and Verilog for FPGA design and programming.
Q: Can the EP3C40F780I7 be used in battery-operated devices?
A: Yes, the low-power design of the EP3C40F780I7 makes it suitable for battery-operated devices requiring customizable digital logic functionality.
EP3C40F780I7 Equivalents
For similar functionalities, consider these alternatives to the EP3C40F780I7:
- XC3S50A-4TQG144C: This is a Spartan-3A FPGA from Xilinx, offering similar programmable logic capabilities in a different package.
- LatticeECP3-35: This is an FPGA from Lattice Semiconductor with comparable features and programmable logic resources.
EP3C40F780I7 Specifications
| Product Category |
FPGA - Field Programmable Gate Array |
Shipping Restrictions |
This product may require additional
documentation to export from the United States. |
| RoHS |
No -RoHS Version Available |
Series |
Cyclone III EP3C40 |
| Number of Logic Elements |
39600 LE |
Embedded Memory |
1.11 Mbit |
| Number of I/Os |
535 I/O |
Supply Voltage - Min |
1.15 V |
| Supply Voltage - Max |
1.25 V |
Minimum Operating Temperature |
- 40 C |
| Maximum Operating Temperature |
+ 85 C |
Mounting Style |
SMD/SMT |
| Package / Case |
FBGA-780 |
Brand |
Altera |
| Maximum Operating Frequency |
315 MHz |
Moisture Sensitive |
Yes |
| Number of Logic Array Blocks - LABs |
2475 LAB |
Operating Supply Voltage |
1.15 V to 1.25 V |
| Product Type |
FPGA - Field Programmable Gate Array |
Factory Pack Quantity |
36 |
| Subcategory |
Programmable Logic ICs |
Total Memory |
1161216 bit |
| Tradename |
Cyclone III |
Part # Aliases |
970756 |
***************************************************************
