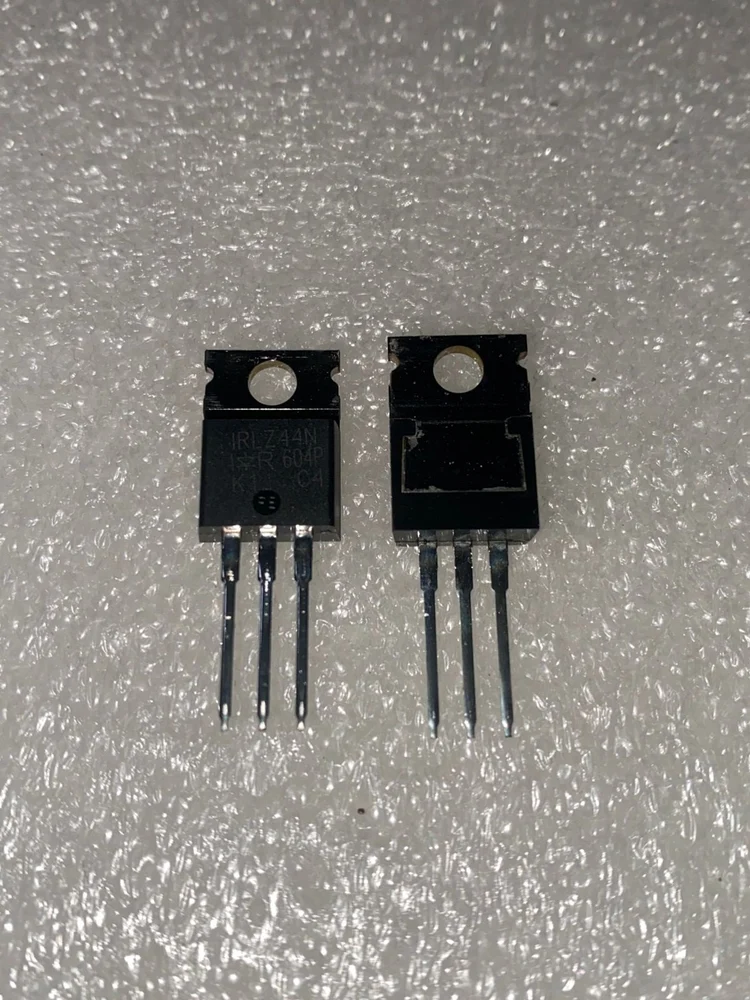

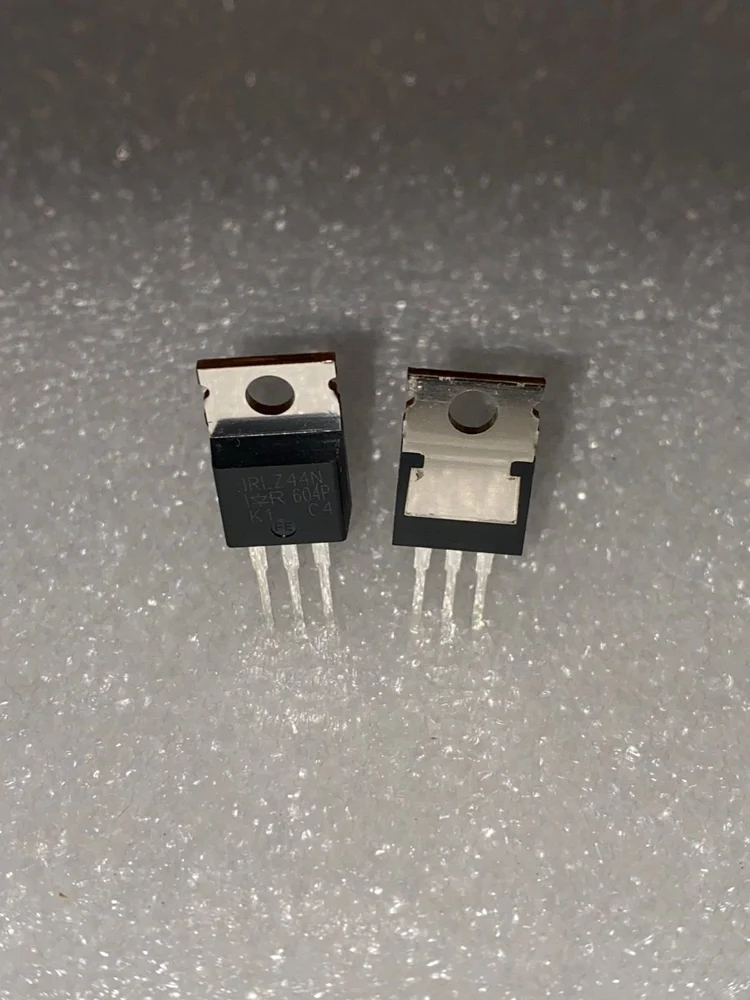

The IRLZ44N is a 55V Single N-Channel Power MOSFET optimized for high-performance in low-frequency applications. It provides excellent performance for switching below 100kHz.
Features
- Planar cell structure for wide SOA: This feature enables the IRLZ44N to operate within a wider safe operating area, making it suitable for demanding applications.
- Optimized for broadest availability from distribution partners: The IRLZ44N is designed to be widely available from various distribution partners, ensuring that customers can easily source this component.
- Product qualification according to JEDEC standard: This feature ensures that the IRLZ44N meets industry-standard specifications for quality and performance.
- Silicon optimized for applications switching below 100kHz: The IRLZ44N is specifically designed for low-frequency applications, making it an excellent choice for circuits that require high-performance at low frequencies.
- Industry standard through-hole power package: The TO-220 package used by the IRLZ44N is a widely recognized and industry-standard format, making it easy to integrate into existing designs.
- High-current rating: The IRLZ44N has a high current rating, making it suitable for applications that require high currents.
- Increased ruggedness: This feature ensures that the IRLZ44N is more resistant to environmental stressors and mechanical shock.
- Wide availability from distribution partners: The IRLZ44N is widely available from various distribution partners, ensuring that customers can easily source this component.
- Industry standard qualification: This feature ensures that the IRLZ44N meets industry-standard specifications for quality and performance.
- High performance in low frequency applications: The IRLZ44N is designed to provide high-performance in low-frequency applications, making it an excellent choice for circuits that require high-performance at low frequencies.
- Standard pin-out allows for drop-in replacement: The standard pin-out of the IRLZ44N makes it possible to replace existing components with minimal modifications.
- High current capability: The IRLZ44N has a high current capability, making it suitable for applications that require high currents.
Advantages and Disadvantages
Advantages
- High-performance in low-frequency applications: The IRLZ44N is designed to provide high-performance in low-frequency applications, making it an excellent choice for circuits that require high-performance at low frequencies.
- Wide availability from distribution partners: The IRLZ44N is widely available from various distribution partners, ensuring that customers can easily source this component.
Specifications
| Mounting |
THT |
Polarity |
N |
| Ptot max |
83.0 W |
Tj max |
175.0 °C |
| VGS max |
16.0 V |
Package |
TO-220 |
| RthJC max |
1.8 K/W |
VDS max |
55.0 V |
| RDS (on) max |
35.0 mΩ |
VGS(th) max |
2.0 V |
| VGS(th) min |
1.0 V |
ID max |
47.0 A |
| Operating Temperature max |
175.0 °C |
Operating Temperature min |
-55.0 °C |
Frequently Asked Questions
Q: What is the maximum voltage rating of the IRLZ44N?
A: The maximum voltage rating of the IRLZ44N is 55V.
Q: What is the current rating of the IRLZ44N?
A: The current rating of the IRLZ44N is not specified in the provided information.
Q: Is the IRLZ44N suitable for high-frequency applications?
A: No, the IRLZ44N is designed for low-frequency applications and may not be suitable for high-frequency applications.
***************************************************************
