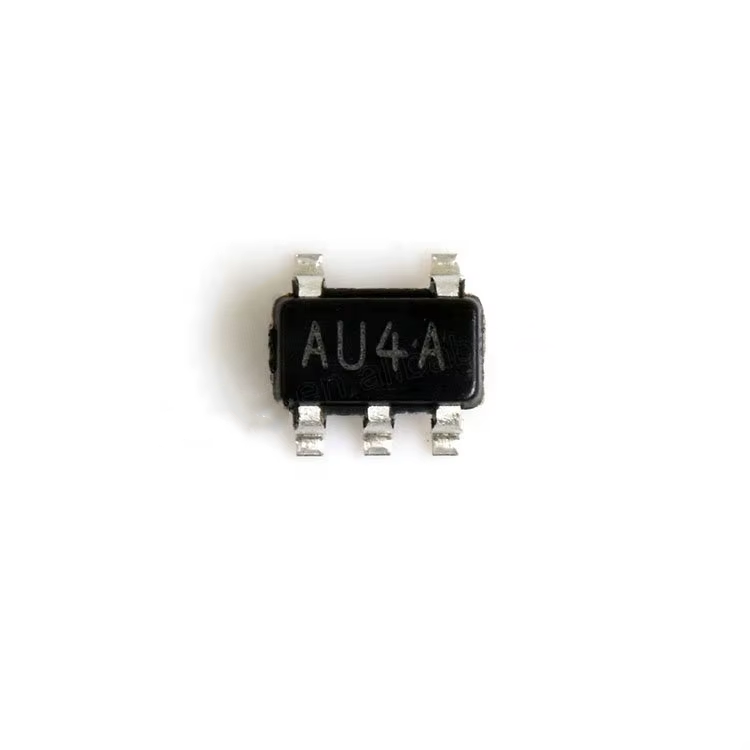

The LM7321MF/NOPB is a versatile and reliable operational amplifier IC that offers a balance of performance and power efficiency. With its wide input voltage range of 2.5V to 32V, this IC can accommodate a variety of power supply configurations, making it suitable for a range of applications. Its RoHS compliance underscores its commitment to environmental responsibility, providing assurance that it meets regulatory standards.
Features
- Operating Frequency Range 10 kHz to 200 kHz
- Linearity Error ±0.2%
- Current Consumption per Channel 50 μA
Application
- LM7321MF/NOPB is a versatile op amp
- High-speed performance in a small package
- Perfect for audio and data systems
| Type |
Description |
| Category |
Integrated Circuits (ICs)
Linear
Amplifiers
Instrumentation, Op Amps, Buffer Amps |
| Mfr |
Texas Instruments |
| Packaging |
Tape & Reel (TR)
Cut Tape (CT) |
| Part Status |
Obsolete |
| Amplifier Type |
General Purpose |
| Number of Circuits |
1 |
| Output Type |
Rail-to-Rail |
| Slew Rate |
18V/µs |
| Gain Bandwidth Product |
20 MHz |
| Current - Input Bias |
1.1 µA |
| Voltage - Input Offset |
700 µV |
| Current - Supply |
1.1mA |
| Current - Output / Channel |
100 mA |
| Voltage - Supply Span (Min) |
2.5 V |
| Voltage - Supply Span (Max) |
32 V |
| Operating Temperature |
-40°C ~ 125°C |
| Mounting Type |
Surface Mount |
| Package / Case |
SC-74A, SOT-753 |
| Supplier Device Package |
SOT-23-5 |
| Base Product Number |
LM7321 |
***************************************************************
