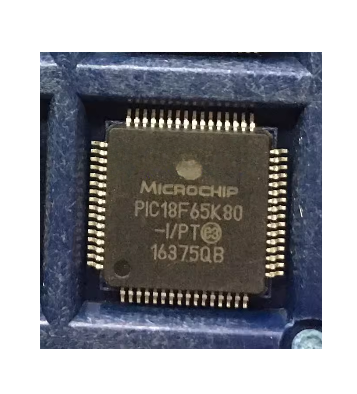

The PIC18F65K80-I/PT is a high-performance 8-bit microcontroller from Microchip that offers versatile features for embedded applications. It combines a wide range of peripherals, high computational performance, and enhanced memory capabilities, making it suitable for various embedded systems.
PIC18F65K80-I/PT Key Features
- High-Performance 8-bit Microcontroller: The PIC18F65K80-I/PT offers advanced performance for demanding embedded applications.
- Wide Range of Peripherals: Includes various peripherals such as UART, SPI, I2C, ADC, and PWM modules for enhanced functionality.
- Enhanced Memory Capabilities: Features ample program memory and data memory for storing code and variables.
- Low Power Consumption: Optimized power-saving modes make it suitable for battery-powered devices.
- Flexible I/O Ports: Provides multiple I/O ports for interfacing with external components and sensors.
PIC18F65K80-I/PT Application
- Embedded Systems: Ideal for a wide range of embedded applications including consumer electronics, industrial control, and automation.
- IoT Devices: Suitable for IoT devices that require connectivity and processing capabilities.
- Motor Control: Can be used in motor control applications for precise speed and direction control.
Functionality
The PIC18F65K80-I/PT is a versatile microcontroller with high computational performance and a rich set of peripherals. It enables developers to create innovative embedded systems with ease.
Usage Guide
- Power Supply: Connect the VDD and VSS pins to the respective power and ground sources.
- I/O Connections: Utilize the I/O ports for interfacing with external devices and components.
- Programming: Use Microchip's MPLAB development environment for programming and debugging.
PIC18F65K80-I/PT Equivalent
For similar functionalities, consider these alternatives to the PIC18F65K80-I/PT:
- PIC16F886: A lower-cost alternative with similar 8-bit architecture and basic peripheral set.
- PIC18F45K22: This microcontroller offers comparable performance and peripheral integration to the PIC18F65K80-I/PT.
PIC18F65K80-I/PT Specifications
| Program Memory Size (KB) |
32 |
RAM (bytes) |
3648 |
| Data EEPROM (bytes) |
1024 |
Pin Count |
64 |
| Operation Voltage Max.(V) |
5.5 |
Operation Voltage Min.(V) |
1.8 |
| Timers |
2 x 8-bit - 3 x 16-bit |
Max ADC Resolution (bits) |
12 |
| ADC Channels |
11 |
Zero Cross Detect |
No |
| Number of Comparators |
2 |
SPI |
1 -SPI |
| I2C |
1 -I2C |
Stand alone PWM |
0 |
| Low Power |
Yes |
Numerically Controlled Oscillator (NCO) |
0 |
| Data Signal Modulator (DSM) |
0 |
|
***************************************************************
