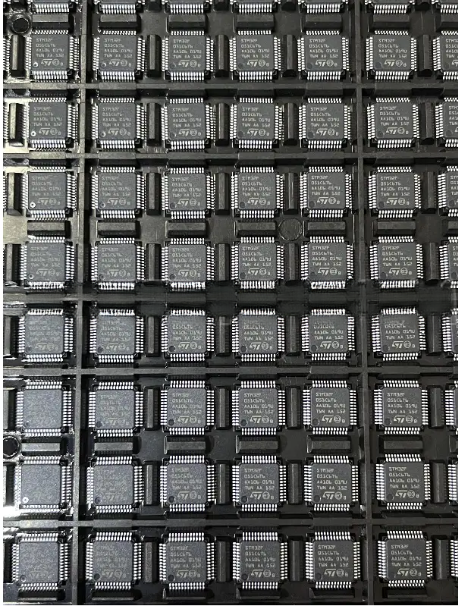

The STM32F051C6T6 is an entry level STM32 F0 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M0 RISC core operating at a 48MHz frequency, high speed embedded memories (Flash memory up to 32kB and SRAM up to 8KB) and an extensive range of enhanced peripherals and I/Os. This device offer standard communication interfaces (one I²C, one SPI, one I²S, one HDMI CEC and two USARTs), one 12-bit ADC, one 12-bit DAC, six 16-bit timers, one 32-bit timer and an advanced control PWM timer.
STM32F051C6T6 Feature
- CRC calculation unit
- Power-on/Power-down reset (POR/PDR)
- Programmable voltage detector (PVD)
- Low-power modes - Sleep, stop, standby
- VBAT supply for RTC and backup registers
- 4 to 32MHz Crystal oscillator
- 32kHz Oscillator for RTC with calibration
- Internal 8MHz RC with x6 PLL option
- Internal 40kHz RC oscillator
- 5-channel DMA Controller
- Two fast low-power analog comparators with programmable input and output
- Up to 18 capacitive sensing channels supporting touchkey, linear and rotary touch sensors
- Independent and system watchdog timers
- SysTick Timer
- Calendar RTC with alarm and periodic wakeup from Stop/Standby
- HDMI CEC interface, wakeup on header reception
- Serial wire debug (SWD)
- 96-bit Unique ID
STM32F051C6T6 Application
- Embedded Systems: Ideal for various embedded systems applications requiring processing power and connectivity.
- IoT Devices: Suitable for IoT devices that need to communicate over different interfaces.
- Sensor Interfaces: Used in sensor interfacing applications for data acquisition and processing.
Functionality
The STM32F051C6T6 microcontroller offers a versatile and efficient platform for developing embedded applications. Its combination of processing power and peripheral support makes it suitable for a wide range of applications.
Usage Guide
- Power Supply: Connect VDD and VDDA (Positive Power Supply) to the appropriate voltage levels.
- Peripheral Connections: Utilize the GPIO pins and communication interfaces for connecting external devices.
- Programming: Use the integrated flash memory to store and execute program code.
STM32F051C6T6 Related Products
- STM32F051C4 MCU, MIC, ST, LQFP48
- STM32F051C4T6 ARM Microcontrollers - MCU, LQFP-48
- STM32F050G4U6 ARM Microcontrollers - MCU, UFQFPN-28
- STM32F050G6U6 ARM Microcontrollers - MCU, UFQFPN-28
- STM32F050K4U6 ARM Microcontrollers - MCU, UFQFN-32
- STM32F050K6U6 ARM Microcontrollers - MCU, UFQFPN-32
STM32F051C6T6 Specifications
| Supply Voltage Min Volt |
2.0 |
Supply Voltage Max Volt |
3.6 |
| Operating Temp Min Celsius |
-40.0 |
Operating Temp Max Celsius |
85.0 |
| Core |
Arm Cortex-M0 |
ECCN US |
3A991.a.2 |
| ECCN EU |
NEC |
Packing Type |
Tray |
| RoHs compliant |
Ecopack2 |
Grade |
Industrial |
| Package Name |
LQFP 48 7x7x1.4 mm |
|
***************************************************************
