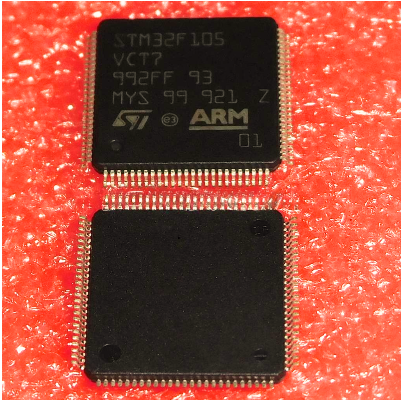

STM32F105VCT7

The STM32F105VCT7 is a high-performance ARM Cortex-M3 microcontroller with 512KB Flash memory, 64KB RAM, and advanced peripherals. It offers a wide range of connectivity options and features, making it ideal for embedded applications requiring robust processing capabilities.

STM32F105VCT7 Key Features

• ARM Cortex-M3 Core: Provides high performance and efficient processing capabilities for embedded applications.
• Advanced Peripherals: Integrated peripherals include ADC, DAC, USB, UART, SPI, I2C, and more for versatile connectivity.
• 512KB Flash Memory: Offers ample storage space for program memory and firmware updates.
• Low Power Consumption: Features multiple low-power modes for energy-efficient operation.
• Wide Operating Voltage Range: Operates from 2.0V to 3.6V, suitable for various power supply configurations.

STM32F105VCT7 Application

• Embedded Systems: Ideal for use in embedded systems, IoT devices, industrial control, and automation applications.
• Communication Systems: Suitable for communication systems requiring robust processing and connectivity options.
• Motor Control: Used in motor control applications for precise control and monitoring functionalities.

Functionality

The STM32F105VCT7 microcontroller combines high-performance processing capabilities with advanced peripherals to deliver efficient and reliable operation in embedded applications.

Usage Guide

• Power Supply: Connect VDD (Pin 8) to the positive power supply and VSS (Pin 1) to ground.
• Peripheral Connections: Interface external devices and sensors with the GPIO and communication pins for data exchange.
• Boot Mode Selection: Set the BOOT0 pin to the desired boot mode for programming and execution.
