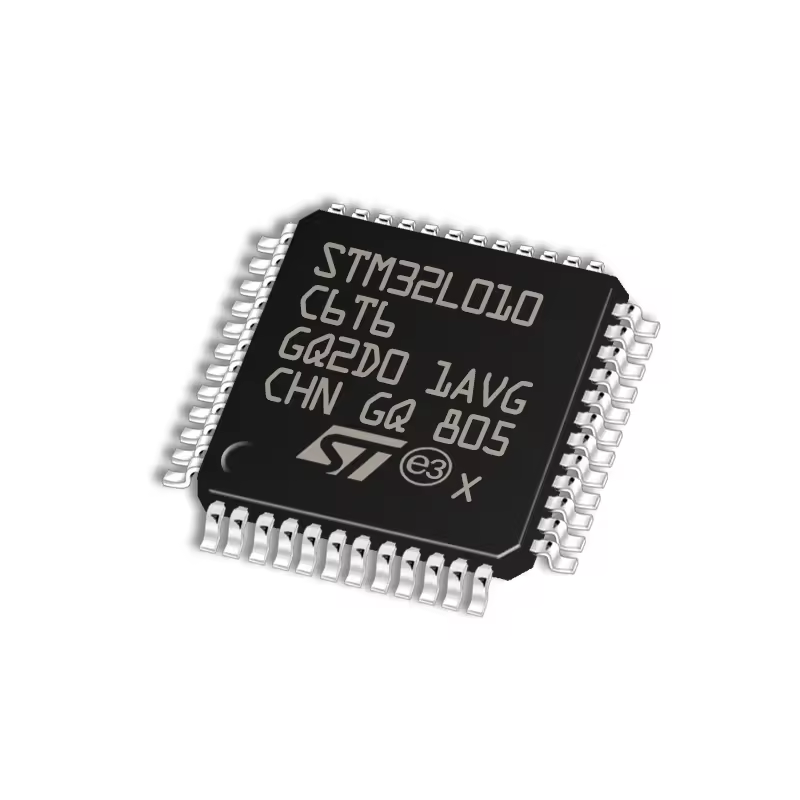

The STM32L010C6T6 is a 32-bit ultra-low-power microcontroller based on the ARM Cortex-M0+ core. It offers a wide range of peripherals and features optimized power consumption, making it ideal for battery-powered applications and energy-efficient systems.
STM32L010C6T6 Key Features
- ARM Cortex-M0+ Core: Offers 32-bit processing power with low power consumption.
- Ultra-Low-Power: Optimized power modes for energy-efficient operation.
- Peripheral Set: Includes a variety of communication interfaces and peripherals for versatile applications.
- Rich Development Ecosystem: Support for various development tools and software libraries for easy application development.
- Secure Firmware Update: Built-in mechanisms for secure firmware updates and bootloader operation.
STM32L010C6T6 Application
- Battery-Powered Devices: Ideal for applications requiring long battery life and low power consumption.
- IoT Devices: Suitable for Internet of Things (IoT) devices that need to connect to networks with minimal power usage.
- Sensor Nodes: Used in sensor nodes and data acquisition systems where low-power operation is essential.
Functionality
The STM32L010C6T6 microcontroller provides efficient processing and communication capabilities while maintaining ultra-low power consumption. It is designed to meet the requirements of energy-conscious applications.
Usage Guide
- Power Supply: Connect VDD and VDDA to the appropriate power supply voltages.
- GPIO Configuration: Configure the general-purpose I/O pins for interfacing with external components.
- Debugging: Use SWD debug interface for programming and debugging the microcontroller.
STM32L010C6T6 Frequently Asked Questions
Q: Is the STM32L010C6T6 suitable for real-time applications?
A: Yes, the STM32L010C6T6 with its ARM Cortex-M0+ core is capable of handling real-time tasks effectively.
Q: Can the STM32L010C6T6 be programmed using Arduino IDE?
A: While it is not natively supported by Arduino IDE, there are libraries and development tools available to program STM32 microcontrollers.
STM32L010C6T6 Equivalent
For similar functionalities, consider these alternatives to the STM32L010C6T6:
- STM32F030F4P6: Another low-power STM32 microcontroller with similar features and performance characteristics.
- ATSAMD21E18A: A microcontroller from Microchip with ARM Cortex-M0+ core and low-power operation suitable for similar applications.
STM32L010C6T6 Specifications
| Supply Voltage Min Volt |
1.8 |
Supply Voltage Max Volt |
3.6 |
| Operating Temp Min Celsius |
-40.0 |
Operating Temp Max Celsius |
85.0 |
| Core |
Arm Cortex-M0+ |
ECCN US |
3A991.a.2 |
| ECCN EU |
NEC |
Packing Type |
Tray |
| RoHs compliant |
Ecopack2 |
Grade |
Industrial |
| Package Name |
LQFP 48 7x7x1.4 mm |
***************************************************************
