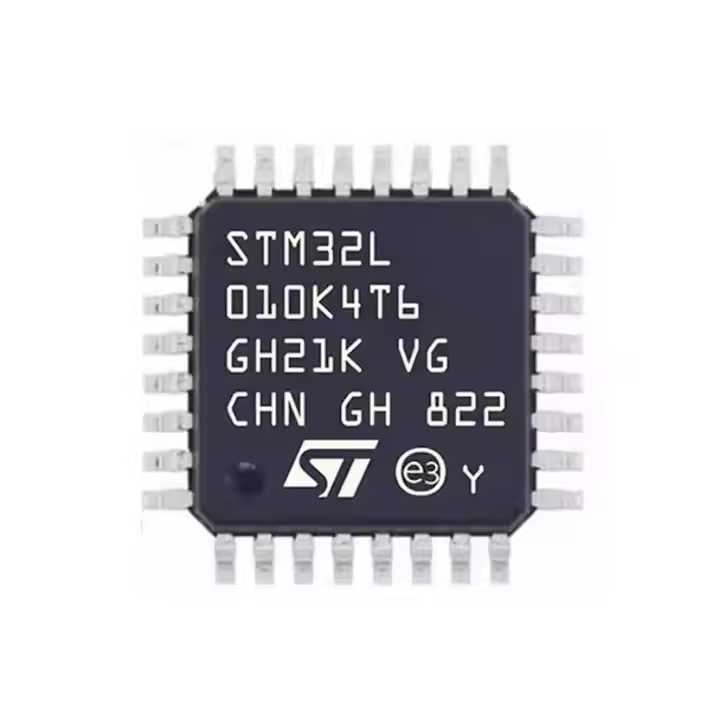

The STM32L010K4T6 is a low-power ARM Cortex-M0+ microcontroller from STMicroelectronics, offering a balance of performance and energy efficiency. It is designed for applications requiring ultra-low-power consumption and features a rich set of peripherals for connectivity and control.
STM32L010K4T6 Key Features
- ARM Cortex-M0+ Core: Provides efficient processing capabilities with low power consumption.
- Ultra-Low-Power Operation: Ideal for battery-powered or energy-efficient applications.
- Rich Peripherals: Includes various connectivity and control peripherals for versatile applications.
- Multiple I/O Pins: Offers a range of general-purpose I/O pins for flexible interfacing.
- Integrated Analog Power Supply: Simplifies system design for analog applications.
STM32L010K4T6 Application
- IoT Devices: Suitable for Internet of Things (IoT) devices requiring low power and connectivity.
- Wireless Sensor Networks: Used in wireless sensor networks for data acquisition and transmission.
- Embedded Systems: Ideal for a wide range of embedded system applications with energy-saving requirements.
Functionality
The STM32L010K4T6 microcontroller combines processing power with energy efficiency, making it a versatile solution for low-power applications that require connectivity and control capabilities.
Usage Guide
- Power Supply: Connect VDD and VDDA to the respective power supplies for digital and analog operation.
- I/O Connections: Utilize the general-purpose I/O pins for interfacing with external components.
- Reset Function: Use the NRST pin for resetting the microcontroller when needed.
STM32L010K4T6 Equivalent
For similar functionalities, consider these alternatives to the STM32L010K4T6:
- STM32L011K4T6: A variant with enhanced features and capabilities for specific applications.
- STM32L031K6T6: Offering similar performance with additional peripherals for connectivity.
STM32L010K4T6 Specifications
| Supply Voltage Min Volt |
1.8 |
Supply Voltage Max Volt |
3.6 |
| Operating Temp Min Celsius |
-40.0 |
Operating Temp Max Celsius |
85.0 |
| Core |
Arm Cortex-M0+ |
ECCN US |
3A991.a.2 |
| ECCN EU |
NEC |
Packing Type |
Tray |
| RoHs compliant |
Ecopack2 |
Grade |
Industrial |
| Package Name |
LQFP 32 7x7x1.4 mm |
|
|
STM32L010K4T6 Frequently Asked Questions
Q: What is the power consumption of the STM32L010K4T6 in active mode?
A: The STM32L010K4T6 consumes a low amount of power in active mode, making it suitable for energy-efficient applications.
Q: Can the STM32L010K4T6 communicate with other microcontrollers?
A: Yes, the STM32L010K4T6 can communicate with other microcontrollers and external devices using its communication interfaces.
***************************************************************
