In modern electronic systems, Low Dropout Linear Regulators (LDOs) are widely used in various precision circuits due to their low noise and high stability. However, LDOs lacking effective protection mechanisms are highly susceptible to damage from overheating or overcurrent when abnormal conditions such as load short circuits or overloads occur. This article systematically analyzes two core overcurrent protection mechanisms in LDOs—Brick-Wall Current Limiting and Overcurrent Shutdown—discussing their principles, implementations, and application scenarios in depth to provide comprehensive design references for engineers.
I. Basic Structure and Protection Requirements of LDO Regulators
1.1 Core Architecture of LDOs
An LDO typically consists of four functional modules:
Error Amplifier: Compares the feedback voltage with a reference voltage to generate an error signal for output regulation.
Power MOSFET: Acts as a linear adjustment component, dynamically adjusting conductivity based on the error signal.
Voltage Feedback Network: Samples the output voltage to form a closed-loop control for voltage stability.
Current Limiting/Protection Module: Integrates current detection and fault response logic, critical for safe LDO operation.
1.2 Necessity of Protection Mechanisms
Unlike switching power supplies, LDOs lack inductive filtering and connect directly to loads, making them vulnerable to abnormal conditions. Statistics show ~37% of LDO failures originate from unprotected overcurrent scenarios, including:
Load Short Circuits: Sudden current surges from direct output grounding.
Inductive Transients: Inrush currents from switching inductive loads.
ESD Breakdown: Overcurrent damage from electrostatic discharge.
Thus, overcurrent protection has become a non-negotiable design requirement for LDOs.
II. Brick-Wall Current Limiting: Flexible Current Clamping
2.1 Working Principle and Characteristics
Brick-wall current limiting is a "hard clamping" mechanism: when the LDO output current exceeds a set threshold (e.g., 500mA), it is forced to a maximum value, independent of load resistance. The I-V curve drops vertically beyond the threshold, resembling a "brick wall," expressed as:
plaintext
When Iout > I_LIMIT, Iout = I_LIMIT
This allows short-term overload operation with thermal shutdown as a final safeguard, suitable for "forgiving" scenarios.

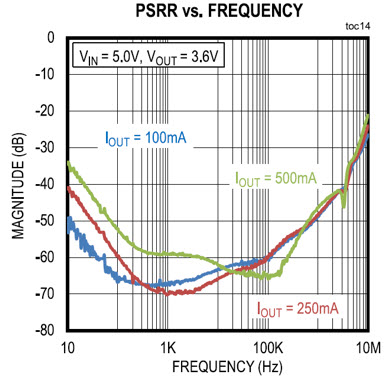

External Programmable Current Limit for MAX38902 LDO
2.2 Circuit Implementation and Key Components
LDOs achieve brick-wall limiting through three stages:
Current Sensing: Monitors output current via current mirrors or sense resistors (Rsense), e.g.:
plaintext
Isense = Iout × (R2/R1) (via current mirror ratio)
Comparison Trigger: A comparator activates limiting logic when sensed current exceeds the threshold.
Dynamic Regulation: Adjusts the power MOSFET’s gate voltage (Vgs) to suppress current, potentially dropping output voltage due to increased dropout.
2.3 Advantages and Applications
Core Benefits:Smooth Transition: Gradual shift from rated to limited current, avoiding voltage drops.
Auto-Recovery: Resumes normal operation after fault clearance without external intervention.
Cost-Effective: High integration with no extra control circuits, ideal for consumer electronics.
Typical Uses:
Nickel-cadmium battery chargers (constant current maintenance).
Sensor power supplies (tolerating transient current fluctuations).
2.4 Limitations and Risks
Heat Generation: Continuous power dissipation P=(Vin−Vout)×ILIMIT may raise junction temperature above 150°C.
Incomplete Shutdown: Sustained short circuits keep current at the limit, risking chip safe operating area (SOA) violations.
III. Overcurrent Shutdown: Aggressive Current Interruption
3.1 Working Principle and Logic
Overcurrent shutdown is a more radical strategy: it cuts off the power MOSFET’s drive signal when detecting overcurrent or overtemperature (e.g., >150°C), putting the output in a high-impedance or grounded state. Prioritizing safety over fault tolerance, it achieves 10–50μs response times.
3.2 Trigger Conditions and Response Flow
Triggers:
Current exceeding I_OC_TH (e.g., 1.2×I_LIMIT).
Junction temperature > T_SHUTDOWN (typically 160°C).
Sudden voltage drop (>30% in 10μs, indicating hard short circuits).
Flow:
Fault detection via comparators or temperature sensors.
Vgs is pulled low to turn off the MOSFET.
Output enters high-impedance state (>10MΩ), dropping power consumption to mW levels.
Remains off until system reset or soft-start signal.
3.3 Application Scenarios and Advantages
High-Risk Fields:
Industrial control (uncontrollable loads in PLCs/drives).
Automotive electronics (ECUs, radar systems in harsh environments).
Medical devices (preventing permanent damage to precision sensors).
Technical Benefits:
Zero Power Protection: MOSFET cutoff eliminates continuous heating.
Fault Isolation: Completely disconnects current paths to prevent cascading failures.
3.4 Challenges and Design Considerations
False Triggers from Capacitive Loads: Inrush currents from large output caps (e.g., 100μF) may misactivate shutdown.
Manual Recovery: Requires system reset or enable pin intervention; no auto-recovery.
Response Delay: Filtering in detection circuits may introduce 10–50μs delays, balancing noise immunity and speed.
IV. Comparison and Hybrid Protection Strategies
4.1 Core Parameter Comparison
|
Dimension
|
Brick-Wall Current Limiting
|
Overcurrent Shutdown
|
|
Response
|
Clamps current, maintains supply
|
Full shutdown, high-impedance state
|
|
Output Voltage
|
May drop to 0V under heavy load
|
Drops to 0V or floats
|
|
Thermal Management
|
Sustained power causes temperature rise
|
Near-zero power, rapid cooling
|
|
Recovery
|
Auto-recovery after fault clearance
|
Requires external reset
|
|
Response Time
|
50–200ns (detection delay)
|
10–50μs (including logic delay)
|
|
Applications
|
Consumer electronics, light overloads
|
Automotive, industrial, medical
|
4.2 Hybrid Protection Architectures
High-end LDOs often combine brick-wall limiting + overcurrent shutdown + thermal shutdown:
Primary Protection: Trigger brick-wall limiting at I_LIMIT, maintaining supply.
Secondary Protection: Activate overcurrent shutdown if limiting persists >5ms and Tj >140°C.
Ultimate Protection: Force thermal shutdown at Tj >160°C, creating a layered defense.
4.3 Design Key Points
Current Limit Setting: (e.g., 360–450mA for 300mA max load).
Thermal Hysteresis: 160°C shutdown / 120°C restart to avoid oscillations.
PCB Thermal Design: Copper area ≥10mm² under MOSFET, thermal resistance ≤15°C/W for heat dissipation.
V. Application Cases and Industry Practices
The TI TPS7A47 high-precision LDO features:
Brick-Wall Limiting: Fixed 1A limit (±5% tolerance), maintaining constant current under overload.
Thermal Shutdown: 160°C shutdown / 125°C restart (35°C hysteresis).
Surge Handling: 500μs soft-start for capacitive loads.
Test Data: Triggers limiting within 100ns on short circuit, shuts down after 5ms if sustained, with Tj rising from 25°C to 160°C in ~8ms (industrial-grade reliability).
5.2 Automotive ECU Power Design
Typical automotive solutions include:
Main LDO: Overcurrent shutdown-enabled devices (e.g., Rohm BD79200EFJ) for cold crank conditions (3V input, high current).
Auxiliary Power: Brick-wall LDOs for sensors, tolerating transient currents.
PCB Layout: ≥2mm power trace width, ≥4 thermal vias for heat dissipation.
VI. Future Trends and Technical Evolution
6.1 Intelligent Protection Technologies
Adaptive Current Limiting: Dynamically adjust I_LIMIT with temperature:
plaintext
Tj < 85°C → I_LIMIT = 1A
85°C ≤ Tj < 125°C → I_LIMIT = 0.7A
Tj ≥ 125°C → Overcurrent shutdown
Fault Diagnosis Interfaces: I2C/SPI reporting for overcurrent/overtemperature events.
6.2 Packaging and Thermal Innovations
Flip Chip Packaging: Reduces thermal resistance below 10°C/W for prolonged limiting operation.
3D Integration: Embedded heat sinks for plug-and-play thermal solutions.
VII. Conclusion: Selection and Design Principles
LDO overcurrent protection must prioritize application scenarios:
Consumer Electronics: Brick-wall limiting for cost and auto-recovery.
Automotive/Industrial: Overcurrent shutdown + thermal shutdown for safety.
Medical Devices: Hybrid protection combining limiting and shutdown for precision and reliability.
Effective protection is not just an "insurance" for LDOs but a cornerstone of system reliability. Engineers must balance protection speed, power consumption, and cost to address evolving electronic applications. With semiconductor advancements, LDO protection will grow smarter and more adaptive, ensuring robust power support for Industry 4.0 and IoT devices.
