Altera EP3C40F780I7-Field Programmable Gate Arrays

Update time : 2025-07-02 17:44:55

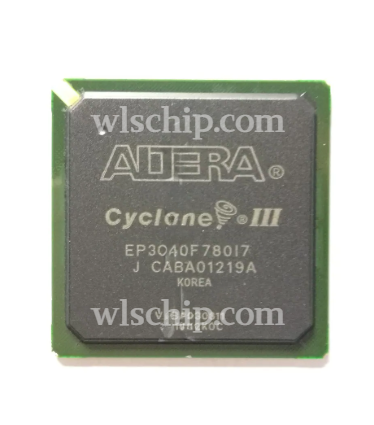

The Altera EP3C40F780I7 is a low-power FPGA from the Cyclone III family, featuring 39,600 logic elements, 126 M9K memory blocks, and 126 18x18 multipliers. With 4 PLLs and 535 user I/Os in an F780 FBGA package, it supports high-speed interfaces like LVDS and DDR2, operating at -40°C to 100°C (I7 speed grade). Ideal for industrial and portable applications, it offers hot-socketing, remote upgrades, and low static power (<0.25W).

Altera EP3C40F780I7's Features

The Altera EP3C40F780I7, a member of the Cyclone III family, combines low power, high functionality, and cost-effectiveness. Key features include:

1. Hardware Resources

Logic Elements (LEs): 39,600 LEs for complex logic design.
Memory: 126 M9K blocks (1.16 Mbits total RAM), configurable as RAM, FIFO, or ROM, supporting single/dual-port modes.
Multipliers: 126 embedded 18×18 multipliers (expandable to 252×9×9), ideal for DSP applications.
Clock Management: 4 phase-locked loops (PLLs) with 5 outputs each, supporting dynamic reconfiguration and clock cascading for reduced jitter.
Global Clock Networks: 20 networks driven by dedicated pins, PLLs, or user logic.

2. Low-Power Design

TSMC Low-Power Process: Enables <0.25W static power consumption, suitable for battery-powered or thermally constrained systems.
Power-Aware Flow: Altera’s design tools optimize power usage, extending battery life in portable devices.

3. I/O and Interface Capabilities

User I/Os: Up to 535 (510 with voltage-referenced standards during vertical migration), supporting 227 differential channels (BLVDS, LVDS, etc.).
I/O Standards: LVTTL, LVCMOS, SSTL, HSTL, PCI, LVPECL, and high-speed differential interfaces (up to 875 Mbps on left/right banks).
OCT Calibration: On-chip termination eliminates PVT (process, voltage, temperature) variations for signal integrity.

4. Embedded Processing & DSP

Nios II Processor: Low-cost embedded solution for custom control logic.
DSP IP Cores: Pre-built FIR, FFT, NCO cores, and integration with MATLAB/Simulink via DSP Builder.

5. Packaging & Temperature

F780 FBGA Package: 29×29 mm, 1.0 mm pitch, suitable for compact PCB designs.
Industrial Grade (I7): Operates at -40°C to 100°C, ensuring reliability in harsh environments.

6. System Features

Hot-Socketing: Supports live board insertion/removal without external circuitry.
Remote System Upgrade: AS/AP configuration for firmware updates without an external controller.
Vertical Migration: Compatible pinout with higher-density devices (e.g., EP3C120) for design scalability.

7. Limitations

No LS-Series Security: Lacks AES-256 encryption and design separation features found in Cyclone III LS devices, unsuitable for security-critical applications.

Altera EP3C40F780I7's Applications

Altera EP3C40F780I7, a low-power FPGA from the Cyclone III family, leverages its logic resources, low-power characteristics, and versatile interfaces for the following application scenarios. The analysis of application scenarios is as follows:

1. Industrial Automation and Control

Feature Support

Industrial temperature range (-40°C to 100°C, I7 speed grade) adapts to harsh environments.
Hot-socketing support (no external components required) facilitates system maintenance and real-time replacement.
High I/O density (up to 535 user I/Os) and multiple I/O standards (LVTTL, LVCMOS, LVDS, etc.) are compatible with industrial buses (e.g., PCI, PCI-X) and sensor interfaces.
Four PLLs enable complex clock management to meet timing synchronization requirements in industrial systems.

Typical Applications

Industrial robot controllers, PLC (Programmable Logic Controller), and motor drive systems.
Fieldbus interfaces (e.g., EtherCAT, Modbus) and industrial IoT (IIoT) gateways.

2. Communication and Data Acquisition

Feature Support

High-speed differential interfaces (BLVDS, LVDS, etc.) support data transmission up to 875 Mbps, suitable for high-speed serial communication.
Auto-calibrating PHY optimizes DDR2 memory interfaces (up to 400 Mbps), enhancing data caching and processing efficiency.
227 differential channels and programmable I/O drive strength adapt to multi-channel data acquisition systems.
Remote system upgrade (AS/AP configuration) enables online firmware updates, reducing downtime.

Typical Applications

Base station RF front-ends and network switch interface modules.
High-speed data recorders and medical imaging acquisition devices (e.g., ultrasound/CT scan data preprocessing).

3. Consumer Electronics and Portable Devices

Feature Support

Low static power consumption (<0.25W) and TSMC low-power process extend battery life (e.g., handheld devices, IoT sensors).
Compact F780 package (29×29 mm) and thermal management optimization suit miniaturized designs.
Nios II embedded processor supports customized control logic, reducing system costs.

Typical Applications

Portable medical devices (e.g., blood glucose monitors, handheld ultrasound equipment).
Smart home controllers and drone data processing modules.

4. Digital Signal Processing (DSP)

Feature Support

126 embedded 18×18 multipliers and DSP IP cores (FIR, FFT, NCO) enable real-time signal processing.
1.16 Mbits of memory resources (M9K blocks) adapt to high-speed data caching and algorithm acceleration.
DSP Builder toolchain integrates with MATLAB/Simulink, simplifying algorithm development.

Typical Applications

Audio processing (e.g., digital mixers, noise cancellation systems).
Video image processing (edge detection, real-time encoding), and radar/sonar signal preprocessing.

5. Automotive Electronics

Feature Support

Industrial-grade temperature range and reliability design meet automotive environment requirements.
High I/O compatibility (support for automotive buses like CAN, LIN) and hot-socketing feature adapt to vehicle electronic modules.
Vertical migration (upgrading to EP3C120 in the same package) supports product iteration and cost optimization.

Typical Applications

In-vehicle infotainment systems and sensor fusion modules for ADAS (Advanced Driver Assistance Systems).
Automotive dashboard controllers and vehicle communication terminals.

6. Educational and Development Platforms

Feature Support

Medium logic density (39.6K LEs) and low-cost positioning are suitable for teaching experiments and prototype development.
Quartus II software support and rich IP cores (e.g., UART, SPI) lower the development threshold.
Compatibility with SOPC Builder facilitates embedded system education and project practice.

Typical Applications

FPGA teaching experiment platforms and hardware carriers for university student electronic design competitions.
Prototype verification and rapid iteration for small and medium-sized enterprise products.

Key Limitations and Adaptation Suggestions

Non-Security-Sensitive Applications: Lacks security features like AES encryption in Cyclone III LS, making it unsuitable for military, financial, or other scenarios requiring high IP protection.
Power-Performance Balance: For higher DSP performance or security functions, consider upgrading to the LS series (e.g., EP3CLS100) or higher-end FPGAs.

Altera EP3C40F780I7's Attributes

Product Category	FPGA - Field Programmable Gate Array	Shipping Restrictions	This product may require additional documentation to export from the United States.
RoHS	No -RoHS Version Available	Series	Cyclone III EP3C40
Number of Logic Elements	39600 LE	Embedded Memory	1.11 Mbit
Number of I/Os	535 I/O	Supply Voltage - Min	1.15 V
Supply Voltage - Max	1.25 V	Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C	Mounting Style	SMD/SMT
Package / Case	FBGA-780	Brand	Altera
Maximum Operating Frequency	315 MHz	Moisture Sensitive	Yes
Number of Logic Array Blocks - LABs	2475 LAB	Operating Supply Voltage	1.15 V to 1.25 V
Product Type	FPGA - Field Programmable Gate Array	Factory Pack Quantity	36
Subcategory	Programmable Logic ICs	Total Memory	1161216 bit
Tradename	Cyclone III	Part # Aliases	970756

Altera EP3C40F780I7's Datasheet

Altera EP3C40F780I7's Pinouts

Pinout Specifications

Parameter	Description
Package Type	F780 (FBGA, FineLine Ball-Grid Array)
Pin Pitch	1.0 mm
Total Pins	780 balls (including power, ground, I/O, and configuration pins)
Maximum User I/Os	535 (without voltage-referenced standards) / 510 (with vertical migration and voltage-referenced standards enabled)
Differential Channels	227 pairs (supporting high-bandwidth interfaces like BLVDS, LVDS)
Voltage Domains	Core: 1.2V; I/O: 1.5V/1.8V/2.5V/3.3V (configurable per I/O bank)
Power Pin Distribution	Dense power/ground (VCC/VSS) balls around the package center and edges for power integrity

Key Pin Classifications and Functions

Power and Ground (VCC/VSS)
- Core Power (VCCINT): 1.2V, distributed in the package center to minimize noise interference for low-power design.
- I/O Power (VCCIO): Independent supply per I/O bank (1.5V/1.8V/2.5V/3.3V), 8 banks total, each with a VCCIO/VSSIO pair.
- Analog Power (VCCA): Supplies analog circuits (e.g., PLL, differential I/O), requiring separate filtering.
- Ground Pins (VSS): High-density distribution, interleaved with power pins to reduce loop inductance.
Clock and Configuration Pins
- Dedicated Clock Pins (CLK): At least 4 global clock inputs (GCLK), supporting differential clocks (e.g., LVDS clock).
- Configuration Pins:
  - nCONFIG: Configuration Enable (active low).
  - DATA0: Configuration data input (AS mode).
  - nSTATUS: Status indicator (configuration complete/error).
  - nCE: Chip Enable (for multi-device cascading).
  - Others: DCLK (configuration clock), nOE (output enable), etc., refer to configuration schemes (AS/AP/PS/JTAG).
I/O Banks and Pin Grouping
- 8 I/O Banks (Bank 0–7):
  - Each bank supports independent voltage and I/O standards (e.g., Banks 0–3 for LVTTL, Banks 4–7 for LVDS).
  - Left/right banks (e.g., Bank 0/1) have dedicated differential drivers for up to 875 Mbps without external resistors; top/bottom banks support 640 Mbps with external resistor networks.
- Differential Pin Pairs: Adjacent pins (e.g., Pin A1/B1) labeled as D[0]_P/D[0]_N, requiring length-matched routing.
- Single-Ended I/Os: Support programmable pull-up, slew rate, and OCT calibration, distributed around the package.
JTAG and Debugging
- TCK/TMS/TDI/TDO: Compliant with IEEE 1149.1 for boundary-scan testing (BST) and in-circuit reconfiguration (ICR).
- nTRST: Optional test reset pin (non-essential).
Special Function Pins
- nCEO: Configuration chain cascade output (daisy chain mode).
- ASDO: Configuration data output in AS mode (for multi-device synchronization).
- VREF: External reference voltage pin for I/O standards like SSTL, HSTL.

Pin Assignment Design Recommendations

Power Integrity
- Core power (VCCINT) requires large copper planes with high-frequency decoupling capacitors (0.1μF ceramic, 1 per 4–6 power balls).
- I/O power (VCCIO) should be grouped by bank to avoid cross-voltage-domain interference.
Clock Routing
- Dedicated clock pins (GCLK) connect directly to PLLs to minimize delay; differential clock pairs (e.g., CLK_P/CLK_N) need length-matched and shielded routing.
High-Speed Differential Interfaces (e.g., LVDS)
- Use dedicated differential drivers in left/right banks (supporting 875 Mbps without external resistors); avoid cross-bank routing.
Vertical Migration Limitation (Note 6)
- If migrating to EP3C120, user I/Os are restricted to 510 when using voltage-referenced standards; plan pin multiplexing in advance.
Thermal Management and Soldering
- The F780 package has no exposed thermal pad (unlike E144); dissipate heat via PCB inner-layer thermal planes and power/ground planes.
- 1.0 mm pin pitch suits standard SMT soldering; follow BGA rework procedures.

Altera EP3C40F780I7's Category-FPGA

FPGA (Field-Programmable Gate Array) is a semiconductor device integrating reconfigurable logic cells, memory blocks, and rich interfaces. With its flexible hardware programmability, it plays a key role in industrial control, communication systems, consumer electronics, and other fields. Its core advantage lies in enabling functional iteration via programming without modifying physical circuits, significantly shortening product development cycles while balancing high-performance computing and low-power design. Modern FPGAs often integrate embedded processors, high-speed differential interfaces, and digital signal processing modules to cater to complex system requirements. For example, Altera's Cyclone III series is renowned for low power and high cost-effectiveness—based on TSMC's low-power process, it achieves static power consumption below 0.25W while balancing high-density logic resources and cost control.
As a typical member of the Cyclone III family, the Altera EP3C40F780I7 features 39,600 logic elements, 126 M9K memory blocks, and 126 18×18 multipliers. It supports dynamic clock management via 4 PLLs and 227 differential channel pairs, with an industrial temperature range (-40°C to 100°C) for harsh environments. The F780 package provides 535 user I/Os, compatible with high-speed interfaces like LVDS and DDR2. Combined with hot-socketing and remote system upgrade capabilities, it emerges as an ideal choice for balancing performance, power consumption, and cost in scenarios such as industrial automation controllers and high-speed data acquisition devices.

EP3C40F780I7's Manufacturer-Altera

Altera has been a pioneer in FPGA technology, driving innovation and setting industry standards. The company revolutionized low-power FPGA design with its Cyclone series, leveraging TSMC’s low-power process to achieve static power consumption below 0.25W in devices like the EP3C40F780I7. This enabled breakthroughs in portable electronics, industrial automation, and energy-efficient systems. Altera’s FPGAs combined high functionality with cost-effectiveness, offering up to 200K logic elements and robust memory architectures (up to 8 Mbits) for diverse applications.
The Nios II embedded processor, a cornerstone of Altera’s solutions, provided customizable embedded processing within FPGAs, reducing system costs and accelerating development. The Quartus II software suite further differentiated Altera, integrating design tools, IP cores, and optimization flows to simplify complex FPGA development. Notable innovations included vertical migration, allowing seamless device upgrades within the same package, and advanced clock management with up to four PLLs for precise timing control.
Altera also led in high-speed interfaces, supporting standards like LVDS, DDR2, and PCI-X, and introduced security features in Cyclone III LS devices with AES encryption. Their FPGAs found critical roles in telecommunications, automotive electronics, and DSP applications, with pre-verified IP cores and DSP Builder tools enhancing design efficiency. Though later acquired by Intel, Altera’s legacy in low-power, high-performance FPGAs and comprehensive ecosystem remains foundational in semiconductor technology.
