| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of channels | 1 | Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
32 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 2.5 | Rail-to-rail |
In, Out |
| GBW (typ) (MHz) | 20 | Slew rate (typ) (V/µs) |
18 |
| Vos (offset voltage at 25°C) (max) (mV) | 6 | Iq per channel (typ) (mA) |
1.1 |
| Vn at 1 kHz (typ) (nV√Hz) | 15 | Rating |
Catalog |
| Operating temperature range (°C) | -40 to 125 | Offset drift (typ) (µV/°C) |
2 |
| Features | High Cload Drive | Input bias current (max) (pA) |
200000 |
| CMRR (typ) (dB) | 80 | Iout (typ) (A) |
0.065 |
| Architecture | Bipolar | Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
| Input common mode headroom (to positive supply) (typ) (V) |
0.1 | Output swing headroom (to negative supply) (typ) (V) |
0.06 |
| Output swing headroom (to positive supply) (typ) (V) |
-0.15 |

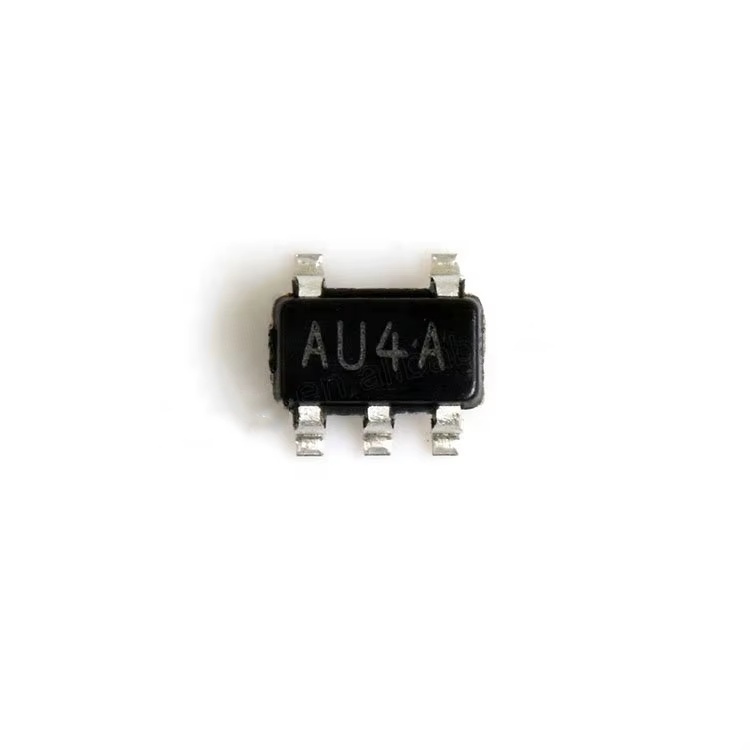

| Part Number |
LM7321QMF/NOPB |
 LM7321MF/NOPB |
 LM7321MFE |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Package | SOT23-5 | SOT-23 (DBV)-5 | SOT-23-5 |
| Description | Op Amp Single High Output Current Amplifier R-R I/O ±16V/32V Automotive AEC-Q100 5-Pin SOT-23 T/R |
Single 1.1uA precision OpAmp ideal for high performance applications |
Single operational amplifier |
| Stock | 6047 | 7852 | 4343 |
| Number of channels | 1 | 1 | |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 32 | 32 | |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 2.5 | 2.5 | |
| Rail-to-rail | In, Out | In, Out | |
| GBW (typ) (MHz) | 20 | 20 | |
| Slew rate (typ) (V/µs) | 18 | 18 | |
| Vos (offset voltage at 25°C) (max) (mV) | 6 | 6 | |
| Iq per channel (typ) (mA) | 1.1 | 1.1 | |
| Vn at 1 kHz (typ) (nV√Hz) | 15 | 15 | |
| Rating | Automotive | Catalog | |
| Operating temperature range (°C) | -40 to 125 | -40 to 125 | |
| Offset drift (typ) (µV/°C) | 2 | 2 | |
| Features | High Cload Drive | High Cload Drive | |
| Input bias current (max) (pA) | 200000 | 200000 | |
| CMRR (typ) (dB) | 80 | 80 | |
| Iout (typ) (A) | 0.065 | 0.065 | |
| Architecture |
Bipolar | Bipolar | |
| Input common mode headroom (to negative supply) (typ) (V) |
-0.1 | -0.1 | |
| Input common mode headroom (to positive supply) (typ) (V) |
0.1 | 0.1 | |
| Output swing headroom (to negative supply) (typ) (V) |
0.06 | 0.06 | |
| Output swing headroom (to positive supply) (typ) (V) |
-0.15 | -0.15 | |
| Rohs Code | No | ||
| Part Life Cycle Code | Obsolete | ||
| Part Package Code | SOT-23 | ||
| Pin Count | 5 | ||
| Reach Compliance Code | not_compliant | ||
| ECCN Code | EAR99 | ||
| HTS Code | 8542.33.00.01 | ||
| Amplifier Type | OPERATIONAL AMPLIFIER | ||
| Average Bias Current-Max (IIB) | 1.5 µA | ||
| Common-mode Reject Ratio-Nom | 80 dB | ||
| Input Offset Voltage-Max | 6000 µV | ||
| JESD-30 Code | R-PDSO-G5 | ||
| JESD-609 Code | e0 | ||
| Length | 2.92 mm | ||
| Moisture Sensitivity Level | 1 | ||
| Neg Supply Voltage Limit-Max | -17.5 V | ||
| Neg Supply Voltage-Nom (Vsup) | -5 V | ||
| Number of Functions | 1 | ||
| Number of Terminals | 5 | ||
| Operating Temperature-Max | 125 °C | ||
| Operating Temperature-Min | -40 °C | ||
| Package Body Material | PLASTIC/EPOXY | ||
| Package Code | TSSOP | ||
| Package Equivalence Code | TSOP5/6,.11,37 | ||
| Package Shape | RECTANGULAR | ||
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
||
| Peak Reflow Temperature (Cel) | 260 | ||
| Qualification Status | Not Qualified | ||
| Seated Height-Max | 1.19 mm | ||
| Slew Rate-Nom | 12.3 V/us | ||
| Supply Voltage Limit-Max | 17.5 V | ||
| Supply Voltage-Nom (Vsup) | 5 V | ||
| Surface Mount | YES | ||
| Temperature Grade | AUTOMOTIVE | ||
| Terminal Finish | TIN LEAD | ||
| Terminal Form | GULL WING | ||
| Terminal Pitch | 0.953 mm | ||
| Terminal Position | DUAL | ||
| Time@Peak Reflow Temperature-Max (s) | 40 | ||
| Unity Gain BW-Nom | 16000 | ||
| Width | 1.6 mm |
